Sheets & Plates , Coils
---------- Stainless Steel ----------
RANGE :
0.1 mm to 100 mm thick upto 2500 mm width & upto 8000 mm length available with NACE MR 01-75s.
Stainless Steel :
ASTM / ASME SA 240 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 317L , 321 , 321H , 347 , 347 H , 409 , 410 , 410S , 430

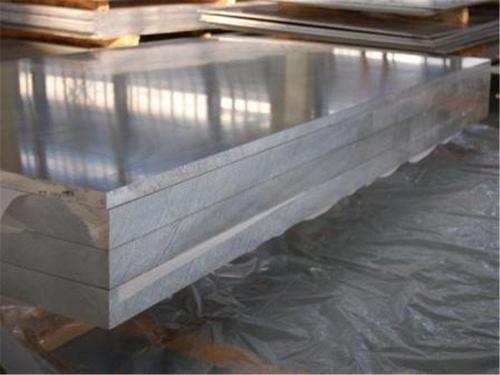

---------- Duplex Steel ----------
Duplex Steel :
ASTM / ASME SA 240 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760.

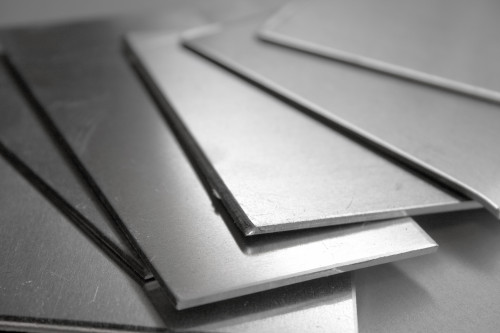

---------- Carbon & Alloy Steel ----------
RANGE :
3 mm to 100 mm thick in upto 2500 mm width upto 12500 mm length available with NACE MR 01-75s
Carbon Steel :
ASTM / ASME A 516 / 517 GR. 60 / 70 , IS 2062 , IS 2002
Alloy Steel :
ASTM / ASME A 387 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91.
---------- Nickel & Copper Alloy ----------
Nickel Alloy :
ASTM / ASME SB 162 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 )
ASTM / ASME SB 127UNS 4400 (MONEL 400 )
ASTM / ASME SB 424 UNS 8825 (INCONEL 825)
ASTM / ASME SB 168UNS 6600 (INCONEL 600 ) / UNS 6601 ( INCONEL 601 )
ASTM / ASME SB 443 UNS 6625 (INCONEL 625)
ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 )
ASTM / ASME SB 462 UNS 8020 ( ALLOY 20 / 20 CB 3 )

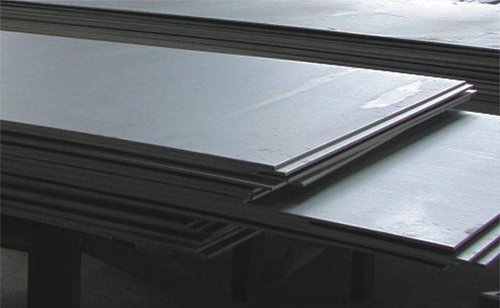

---------- Hastelloy ----------
Grades : Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000
Type:
• Hastelloy Sheet
• Hastelloy Coil
• Hastelloy Strips
• Hastelloy Plates
• Hastelloy Circle
• Hastelloy Ring
---------- Inconel ----------
Grades :
Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Standard: ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443

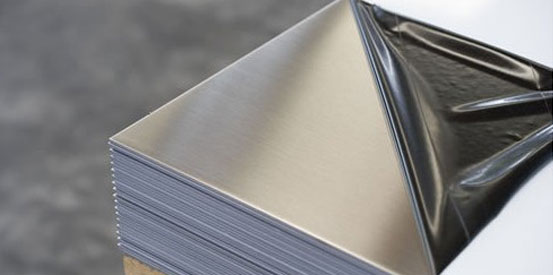

---------- Incoloy ----------
Grades : Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS
Standard : ASTM B407, ASTM B829, ASTM B514, ASTM B775, ASTM B515, ASTM B751
This range is used in :
• Petrochemicals Plants
• Oil Refineries
• Fertilizers Plants
• Sugar Mills
• Chemical Plants
• Pharmaceuticals
• Textile Machinery
---------- Monel ----------
Grades : Monel 400, Monel k500
Length: Single Random, Double Random & Cut Length
End: Plain End, Beveled End, Threaded
The salient features are as follows :
• Hot Dipped Galvanizing
• Epoxy & Fbe Coating
• Electro Polish
• Draw & Expansion
---------- Titanium ----------
Specifications
1)hot and coll rolled, Gr1~Gr23
2)Thickness:0.3mm - 60mm
3)Length:<6000mm
4)ASTM B265,ASTM 4911,F67,F136
1.material:titanium and titanium alloys
pure titanium grade: GR1, GR2, GR3, GR4
titanium alloy grade: GR5 (6% Al, 4%V)
GR6 (5% AL, 2.5%Sn)
Gr.7 (Titanium + Pd)
Gr.9 (3% Al, 2.5%V)
Gr.10 (11.5%Mo, 6% Zr, 4.5% Sn)
Gr.11 (Titanium + Pd)
Gr.12 (0.3% Mo, 0.8% Ni)
| Common Specification: | Specification: | Product Form |
| ASTM B265(Gr2) | Sheet,Strip and Plate | |
| ASTM B338 | Tube,Seamless and Welded | |
| ASTM B348(Gr2) | Bars and Billets | |
| ASTM B861 | Seamless Pipe | |
| ASTM B863 | Wire | |
| ASTM F67(Gr2) | Unalloyed Titanium for Surgical Implants |

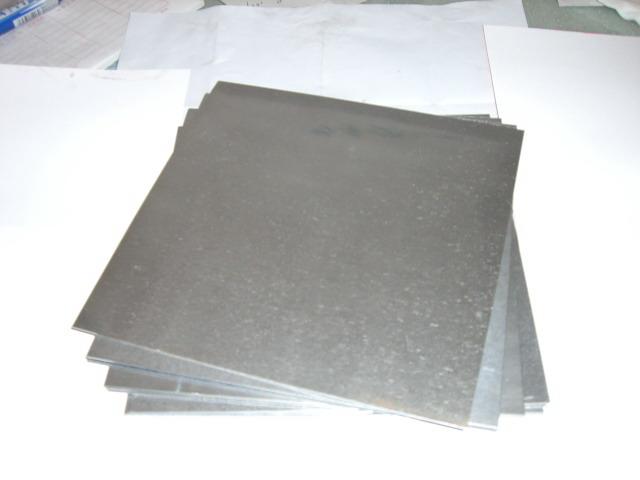

---------- Tantalum ----------
Specifications tantalum sheet, tantalum plate, tantalum foil
Grade: RO5200, Ro5400,RO5252,RO5255
Standard :ASTM B708-98
We are factory specializing in the manufacture and export Tantalum and Niobium prodcut for more than ten years,Including foil tube ,rod,wire,sheet,plate, ,rod,strip,target and so on
We can supply the best quallity and low price.
Tantalum sheets, Tantalum- tungsten alloy sheets(Ta2.5W, Ta10W)
Purity: 99.95%min or 99.99%min conformity with ASTM B 708 98.
| Thickness (mm) | Width (mm) | Length (mm) | |
| Foil | 0.03-0.09 | 30-600 | 100 |
| Sheet | 0.1-0.5 | 30- 609.6 | 30-1000 |
| Board | 0.5-10 | 50-1000 | 50-2000 |

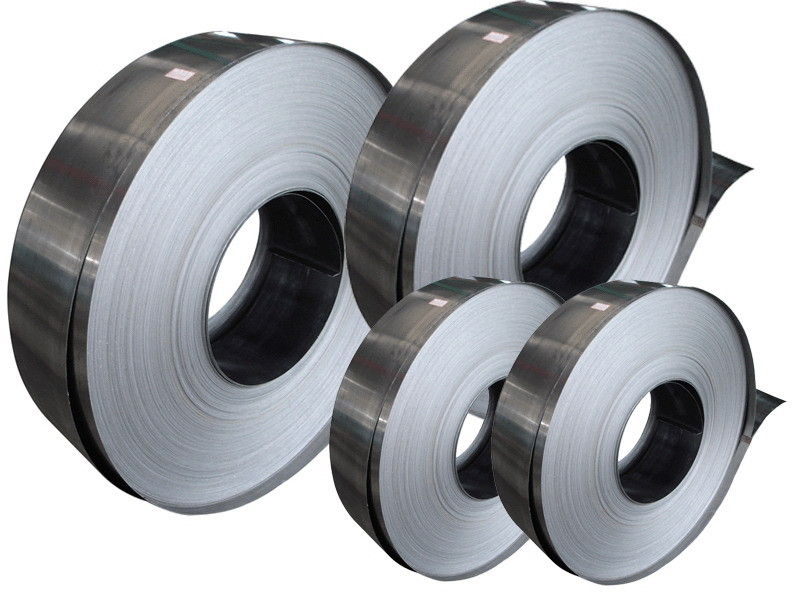

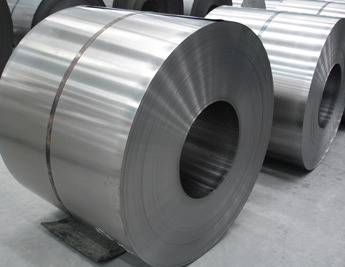

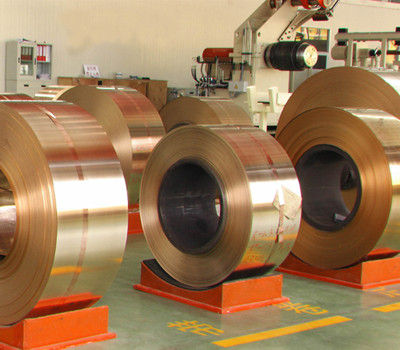

| Stainless Steel Coil | Nickel Alloy Coil | Titanium Coil |
|
|
|
